Tshiab Hom 4 Lub Taub Hau 2m5030-4m Siv Sib Tsoo Polishing Tshuab Rau Hlau Bars
Tshiab Hom 4 Lub Taub Hau 2m5030-4m Siv Sib Tsoo Polishing Tshuab Rau Hlau Bars

Tshiab Hom 4 Lub Taub Hau 2m5030-4m Siv Sib Tsoo Polishing Tshuab Rau Hlau Bars

Ceev DetailsPlace ntawm Keeb Kwm: Shandong, Suav tebBrand Name:HAIGECCondition:NewVideo outgoing{{0}} tshuaj xyuas:ProvidedMachinery Test Report:ProvidedMarketing yam:Kub khoom 2019Warranty ntawm core Cheebtsam: 1 YearCore Cheebtsam:MotorPower (kW): 7. (KG): 0 Ntsiab Muag Cov Ntsiab Lus: Yooj Yim rau Kev Ua HaujlwmWarranty: 1 Xyoo, 12 Lub Hlis Muaj Peev Xwm Kev Lag Luam: Chaw Tsim Khoom Siv Khoom Muag Khoom Muag: Tsis Muaj Kev Pabcuam Tom Qab Muag: engineers muaj rau saib xyuas ntawm qhov chawColor: customizedStandard: ISO9001Pesonnel kev cob qhia: Cov khoom siv npe: Machinepryingun :Product Surface FinishType:Fullly AutomaticAfter-Sale Service Muab: Kev them nyiaj yug online, Video technical supportAfter Warranty Service:Video technical support, Online support Local Service Location: Tsis muaj
Xa kev nug
Product Description
Nqe lus piav qhia:

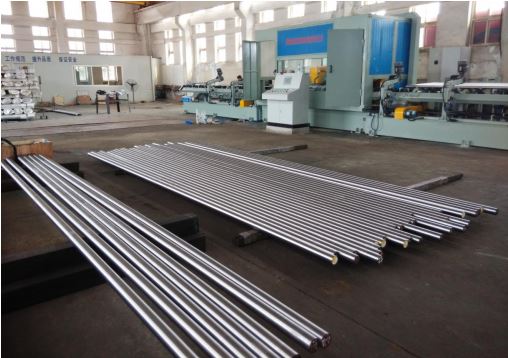

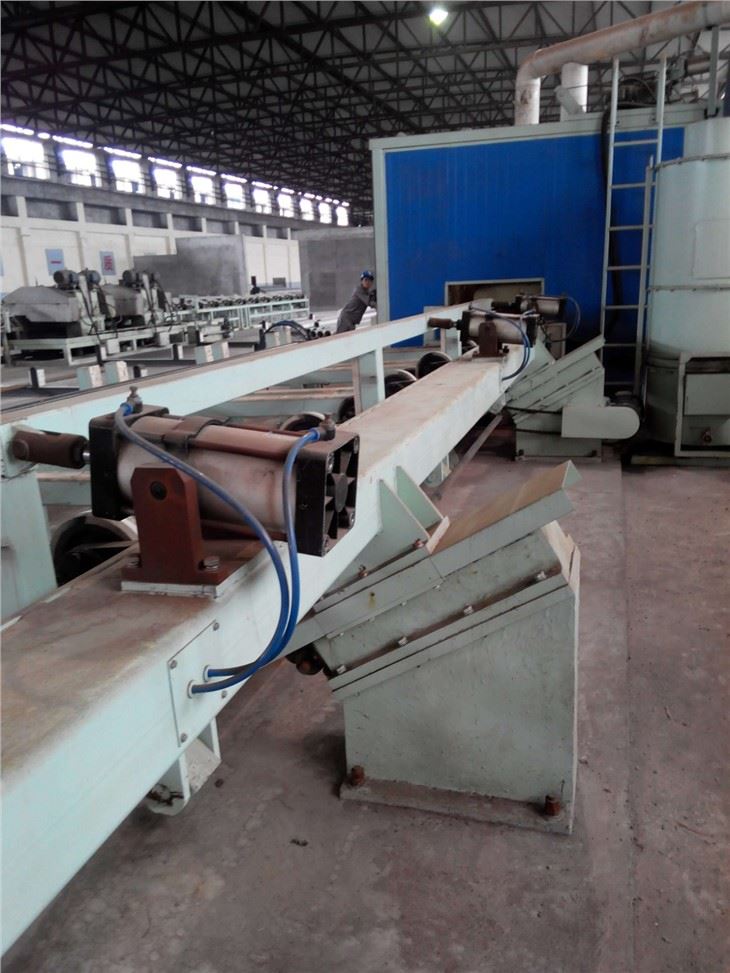

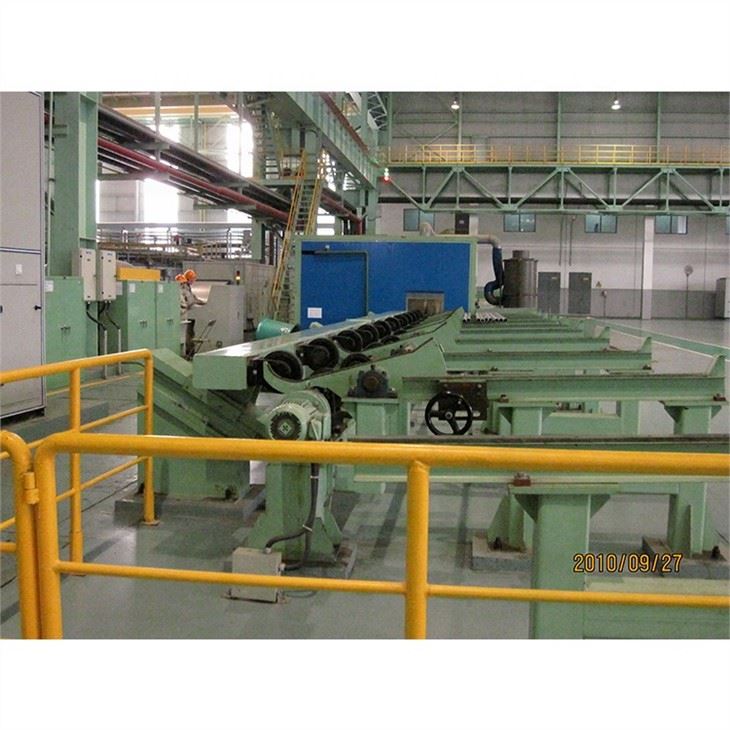

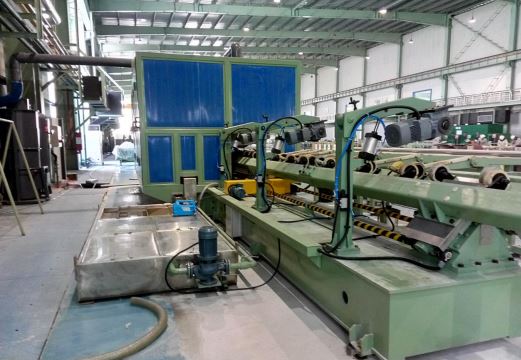

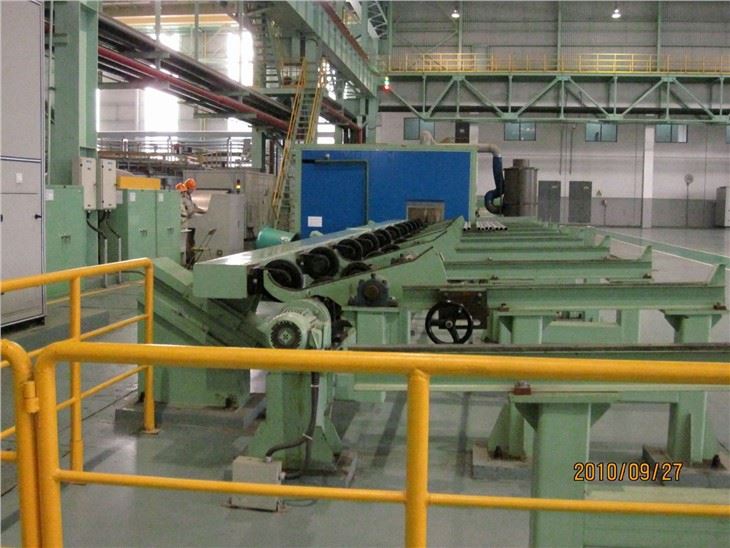

Taw qhia 4-lub taub hau 2M5030-4M tshwj xeeb yog siv rau kev sib tsoo zoo thiab polishing ntawm rodpipe ntev workpiece. Muaj 4 pawg sib tsoo taub hau hauv cov khoom siv no. Abrasive siv yog siv los zom thiab polish txheej txheej ntawm lub workpiece. Lub workpiece
tuaj yeem ua haujlwm tsis tu ncua hauv cov khoom siv lossis ib lub taub hau thiab ntau - taub hau nrog nws tig thiab tsis tu ncua pub rau hauv thiab thauj khoom
thiab unloaded txiav, uas muaj cov yam ntxwv ntawm ruaj khov machining raug, zoo nto zoo, high efficiency, 5- tsawg zog siv. Lub chaw thau khoom thiab tshem tawm khib nyiab yog pneumatic tswj thiab cov txheej txheem sib tsoo yog ntub sib tsoo hom, uas tuaj yeem tswj kev sib tsoo zoo thiab txhim kho qhov chaw tsim khoom kom ruaj khov. Nws yog tsim rau huab hwm coj ntau lawm ntawm cov yeeb nkab
thiab bar qhov chaw.
Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction.Our company can also make specified equipment according to customers' requirement.Our service:1. Free quality guarantee period for 12 months, except for wearing parts. 2. Free provide long-term technical support 3. Free train buyer's operator in seller's factory 4. Fast response service within 24 hours 5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.Packaging and shippingwe have much experience in exporting transportation packaging.Taking multi protection measures:The first layerwrapping with foam film and stretch film for the special components, in order to avoid moisture.Second layerinside of plywood box, adopting small square plywood block and strapping belt to fix.Third layerthe machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.Fourth layerin a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

Specification
Main Parameters1 Specification of Grinding Belt: 4{{20}}00150mm (circumferencewidth)2. Grid of belt: 36400(optional within this range)3Diameter range of workpiece: Φ60Φ 200mm4Length range of workpiece: 30006000mm5Material of workpiece: Carbon steel, stainless steel6Curvature of workpicec: Less than or equal to 3/1000mm8Surface roughness: Ra Less than or equal to 1.6μ m (before polished : Less than or equal to 12μ m)9Weight of single workpiece: Less than or equal to 1500kg10Unilateral grinding depth: Less than or equal to 0.25mm11Specification of contact wheel of grinding belt: Φ 400150mm (diameterwidth)12Linear velocity of grinding belt: 30m/s13Rotational speed of conveying wheel: 20-50r/min (frequency conversion Adjustable)14Axial feeding rate: 0.14m/min(rate adjustment in continuously transmission ,by Variable frequency transmission motor)15Motor power of grinding head: 22kw (4 pcs)16Motor power of conveying wheel: 5.5 kw (2 pcs)17Motor power of lifting grinding head : 0.37 kw (4 pcs)18Motor power of synchronously movement of conveying wheel: 4 kw20 Motor power of mist absorber: 5.5 kw21Motor power of grinding fluid pump 2.2kw(1pcs)22Power supply: AC 3 phase 380v 50HZ input power: 123kw23 Air supply: 0.4—0.6Mpa 0.6m3/min24 machine overall dimension: 2300060003300mm (lengthwidthheight)25 weight of machine: 22T
Khoom Qhia
