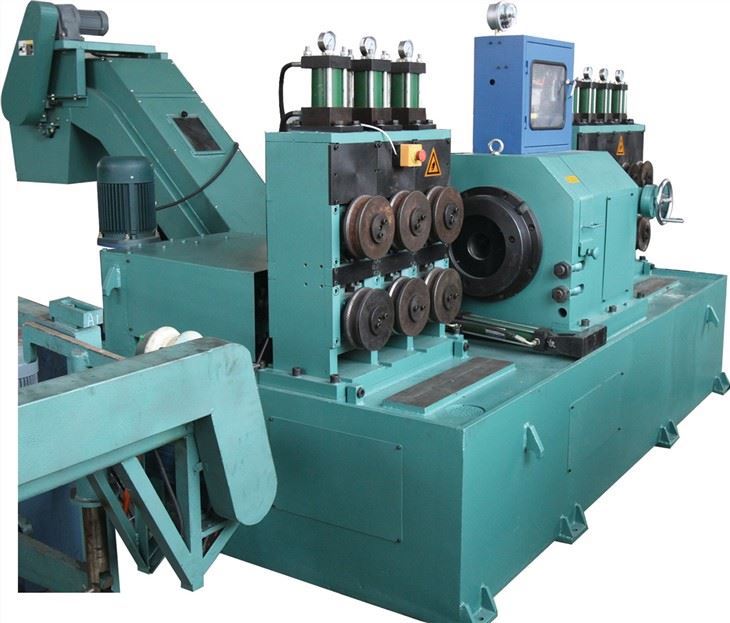

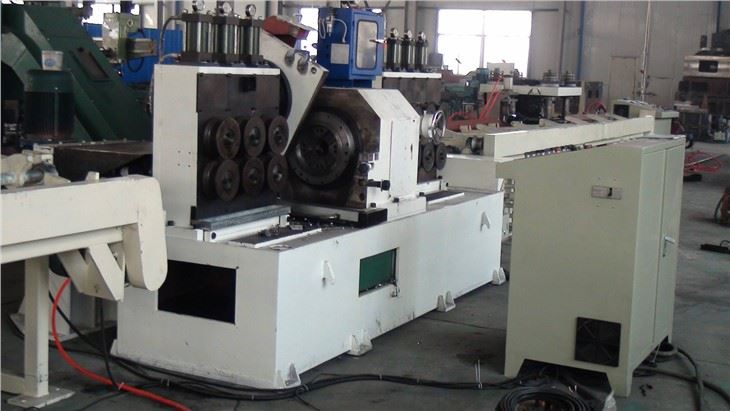

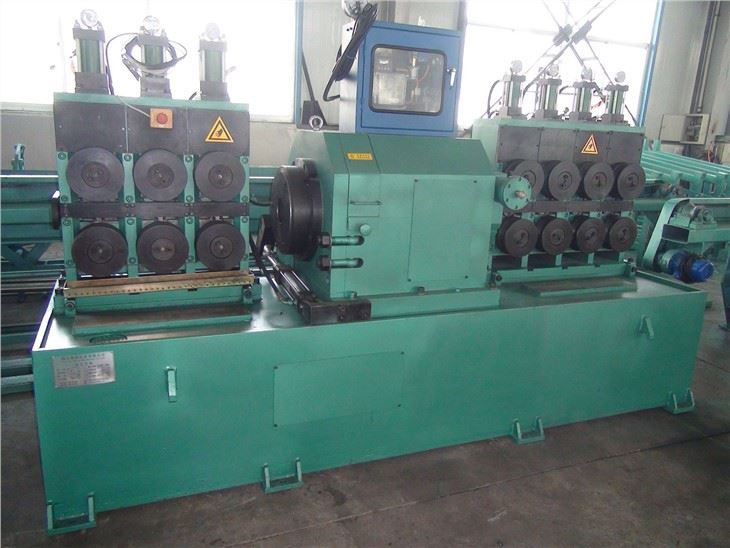

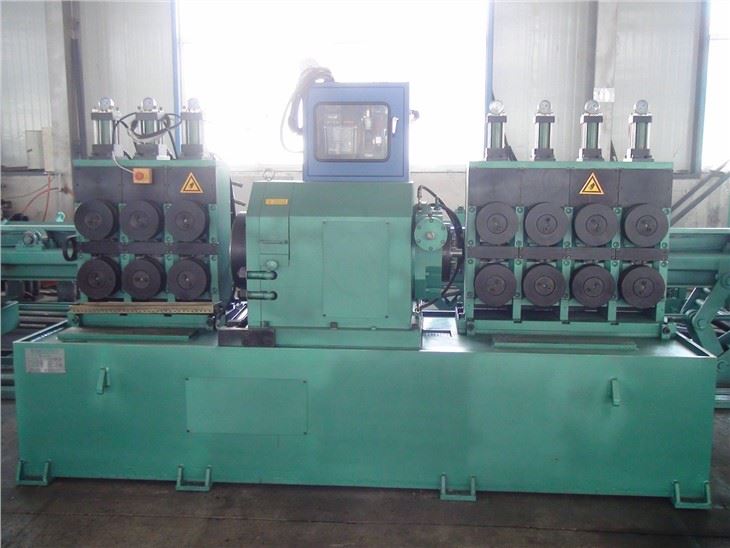

Semi Automatic Titanium Bar Tube Peeling Tshuab Nrog Zoo
Paub meej sai Qhov chaw ntawm Keeb Kwm: Shandong, Tuam Tshoj Hom Lub Npe: haigeCondition: TshiabMachine Hom: Bar peeling tshuabVideo tawm-tshuaj xyuas: MuabMachinery Test Report: Muab Hom Kev Lag Luam: Cov khoom lag luam zoo Kev lees paub ntawm cov khoom tseem ceeb: 1 Xyoo Cov Txheej Txheem: PLC, Bearing, Gearbox, Motor, GearWarranty: 1 Xyoo Tom Qab Kev Muag Khoom Muab: Kev txhawb nqa online, Kev teeb tsa hauv av, kev ua haujlwm thiab kev cob qhia, Kev saib xyuas thiab kho qhov chaw, Kev txhawb nqa yees duab Cov ntsiab lus Muag: Yooj Yim rau Kev Ua Haujlwm Tom Qab Kev Pabcuam Kev Ruaj Ntseg: Video kev txhawb nqa, Kev txhawb nqa hauv online Qhov Chaw Pabcuam Hauv Nroog: Tsis Muaj Kev Lag Luam: Tsim Tsob Nroj, Lwm Yam Khoom Qhov chaw: Tsis muaj Tom qab muag kev pabcuam: kws tshaj lij muaj nyob rau saib xyuas ntawm qhov chaw thov: tsheb sectorcolor: customizedtype: semi-autowarranty: 12monthsstandard: ISO9001Yield Strength: Yield StrengthSurface Hardness: ≤HB320Original Curvature: ≤1 .5Roundness: ≤0.03
Nqe lus piav qhia:
Kev Zoo: Peb lub tuam txhab suav txog kev ua neej zoo. Peb twb dhau ISO9001 ntawv pov thawj, thiab nruj me ntsis siv ISO9001 thoob ntiaj teb kev tswj hwm kev ua haujlwm zoo. Peb khaws kev txhim kho kom zoo kom cov neeg siv khoom yuav khoom nrog kev nplij siab thiab siv nrog kev txaus siab.Peb lub tuam txhab tseem tuaj yeem tsim cov cuab yeej tshwj xeeb raws li cov neeg siv khoom xav tau.Peb cov kev pabcuam: 1. Lub sijhawm lav zoo pub dawb rau 12 lub hlis, tshwj tsis yog rau hnav cov khoom. 2. Pub dawb muab kev txhawb nqa mus sij hawm ntev 3. Dawb qhia tus neeg yuav khoom tus neeg ua haujlwm hauv tus muag khoom lub Hoobkas 4. Kev pab teb sai hauv 24 teev 5.Peb cov kws tshaj lij tuaj yeem muab kev pabcuam txawv tebchaws, suav nrog kev qhia teeb tsa, ua haujlwm, cob qhia, thiab lwm yam, yog tias peb cov neeg siv khoom xav tau.
Qauv | WXC80C |
Khoom siv | Txoj kab uas hla ntau (mm) | Φ21~Φ83X2200~6000 |
Ua kom muaj zog σb （Mpa | ≤1100 |
Cov tawv tawv | HB320 ib |
Thawj Curvature FEFEFEFEFCCCCCCIFJEICurvature (mm/m) | ≤1 .5① |
Txoj kab uas hla kam rau ua | Raws li GB 702-88, 2 pab pawg |
Kev sib puag ncig | ≤50% ntawm txoj kab uas hla kam rau ua |
Nto Roughness (Ra) | ≤25 ～ 50 hli |
Tom qab Peeling | Txoj kab uas hla ntau (mm) | Φ20~Φ80 |
Txoj kab uas hla Txiav tob (hli) | 0.35~1.50 |
Txoj kab uas hla kam rau ua | ≤IT10 (Txuj kev ua siab ntev qib) |
Qhov Hardness (Ra) | ≤3.2-6.3μm |
Curvature (hli/m) | Tib yam li cov khoom siv |
Kev sib puag ncig | ≤0.03 |
Pub Ceev （Kev tswj tsis tau ceev m/min | 1.0 ~ 8.0 （siab zog, siab tawv, pub noj kom nrawm yuav tsum yog txo los kho cov khoom siv loj diameter |
Txiav Lub Taub Hau Kev Hloov Siab （rpm （（r/min | 430~1200 |
Lub Cev Muaj Zog Loj (kW) | 55 (4 tug) |
Pub Lub Cev Muaj Zog (kW) | 5.5 X2 (4 tug) |
Qhov loj me (m) rau siv; | Lub Tshuab Loj 3.0X3.5X2.4 |
Nyhav （t） （nrog racks rau Siv） | 8.5 ua host |
Peev Xwm Tag Nrho (kW) | 75 |
Compressed Air Source (Npaj Tus Kheej) | 0.5 ~ 0.8MPa 、 1.8m3/min 、 0.8 m3 thiab siab dua lub tank 、 2 qib roj& dej cais |
Cim npe nrov: semi automatic titanium bar raj peeling tshuab nrog cov khoom zoo, cov chaw tsim khoom, kev kub ceev, siab raug, siab raug, siab zoo
