2.2 Yam yuav tsum tau muaj
2.2.1 Cov Khoom Siv Ua Haujlwm
2.2.1.1 Khoom npe: Round Bar (slender ncej)
2.2.1.2 Khoom siv: 45, SS ntawm 27SiMn, Q345, 42CrMo, H13, 304
2.2.1.3 Diameter Range: φ16mmφ80mm;
2.2.1.4 Ntev Ntau: Ntau dua lossis sib npaug li 4000mm
2.2.1.5 Khoom Zoo ua ntej Plating: Nto Roughness: Ra0.2--0.5; Kev Ncaj Ncees: 0.1/1000
2.2.2 Cov Khoom Siv Kom Zoo:
1) Coating Thickness: 10-60μ m
2) Chromium Plating tsos: Chrome plating txheej nruam du, siv lead ua ilv thiab iav ci, tsis muaj -plating ib feem ntawm qhov chaw. Qhov saum npoo tsis muaj pinhole, chrome pob, qhov ntxhib, burr, tev lossis lwm yam tsis xws luag.
3) Chrome Txheej Hardness: Ntau dua lossis sib npaug rau 850HV. Chrome plated txheej yog nrees coated, thiab tsis tso tawm nyob rau hauv qhov kev xeem ntawm thim rov qab saw riam.
2.2.3 Machine operating environment in customer's factory
2.2.3.1 Nyob rau hauv ib txwm muaj, ib puag ncig kub yuav tsum yog -10 degree mus rau 50 degree . Hauv huab cua atrocious, tus neeg siv khoom yuav tsum muab cov xwm txheej ntxaws.
2.2.3.2 txheeb ze humidity: Tsawg dua los yog sib npaug rau 85 feem pua; dej: dej ntshiab; 0.2-0.3 Mpa; compressed cua: ib txwm 0.5-0.6 Mpa.
2.2.3.3 Power supply: 3 phase 380V±10 percent （Any difference, please provide detailed parameter.） 50HZ±2 percent
2.2.3.4 Cua nruab nrab: corrosive nruab nrab; xwm txheej: chrome acid pos huab.

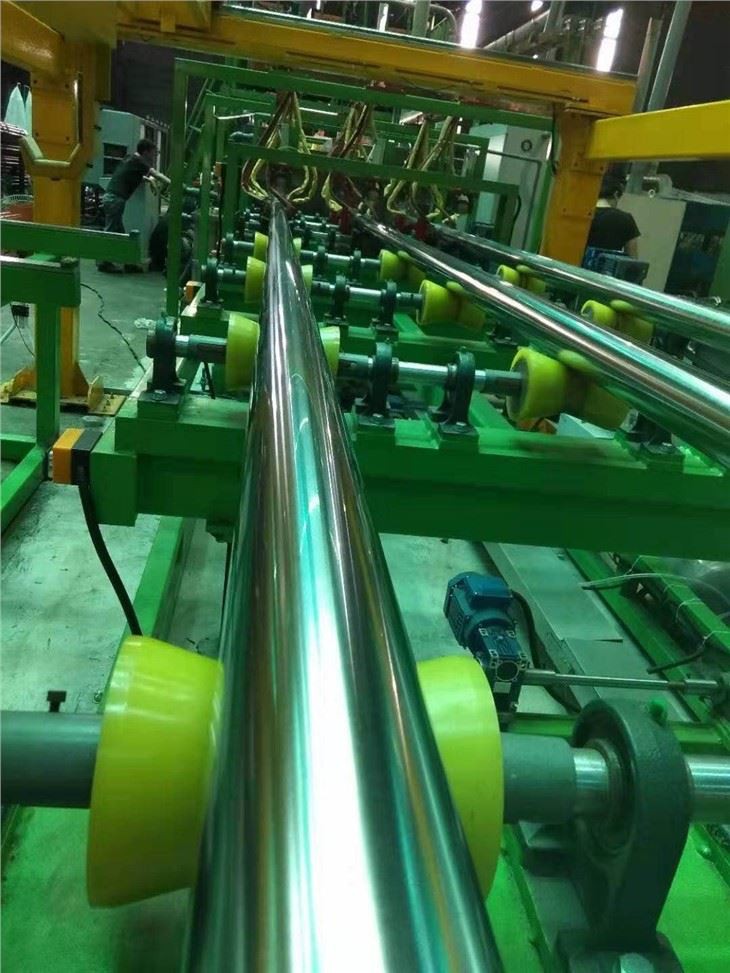

Cim npe nrov: tus nqi siab- zoo propulsion hom multilayer composite plating system, manufacturers, kev kub ceev, siab precision, siab raug, zoo
